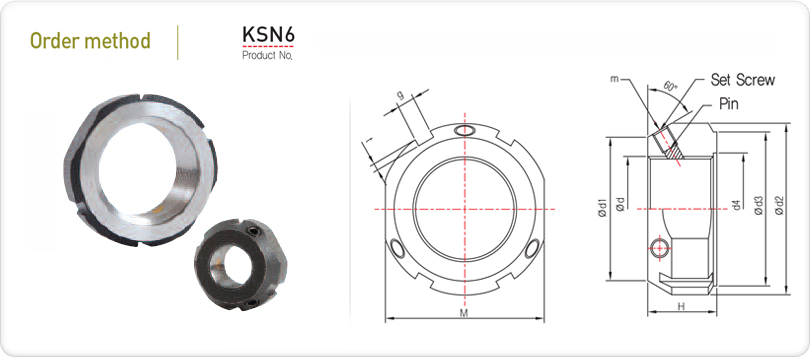

| - KSN can be clamped on each side. |
|
| |
 |
| Main Axis of a machine tool | Ball Screw Support Bearing | Precise spindle |
|
| |
 |
- Material : S45C
- Hardness : HRC 22 - 28
- Surface treatment : Black phosphated coating
- Screw preciseness : ISO4H degree
- Screw angularity : ┴0.002 ~ 0.007mm |
|
|
|
| |
 |
| |
| |
 |
|
